4MA0 Foundation June 2014 Paper 1 Q18

EdexcelFoundationOld spec2 marksConstructions & Bearings

18 The diagram shows an accurate scale drawing of part of the boundary of a field.
The complete boundary of the field is in the shape of a quadrilateral \(ABCD\).

\(AB = 300\) metres.
\(BC = 230\) metres.
Point \(B\) is due north of point \(C\).

The scale of the diagram is 1 cm to 50 metres.

The bearing of \(D\) from \(C\) is 260°
\(AD = 480\) metres.

Complete the scale drawing of the boundary of the field.
Mark the position of \(D\).

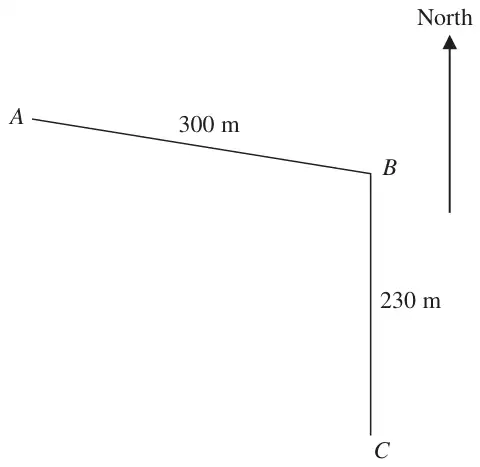

Scale drawing: line AB of 300 m, line BC of 230 m with C due south of B, and a north arrow

(2)

Mark scheme

Scheme	Marks
one bearing line at 260° ± 2° or one 9.6 cm line (± 2mm) from A	M1
Intersection of 2 lines in boundary of overlay	A1
	(2)
	(2 marks)

Notes

A1: condone omission of D label
Correct position of D within tolerance M1A1.
