4MA0 Foundation June 2013 Paper 2R Q10

EdexcelFoundationOld spec7 marksLinear Graphs & Gradients

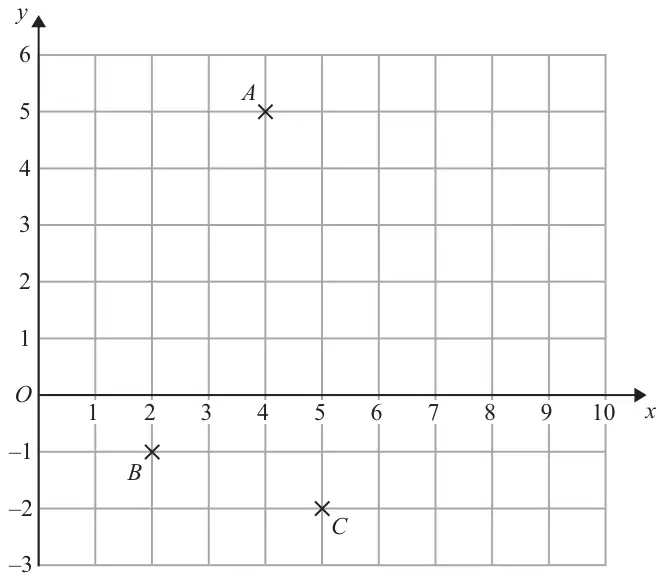

10 The diagram shows three points, \(A\), \(B\) and \(C\), on a centimetre grid.

Grid with x from 0 to 10 and y from -3 to 6 showing points A(4, 5), B(2, -1) and C(5, -2)
(a) Write down the coordinates of
(i) \(A\),
(ii) \(B\).
(2)
(b)
(i) On the diagram, mark with a cross (×) the point \(D\) so that \(ABCD\) is a rectangle.
Label your point \(D\).
(ii) On the diagram, draw rectangle \(ABCD\).
(2)
(c) Write down the order of rotational symmetry of rectangle \(ABCD\). (1)
(d) Find the coordinates of the midpoint of \(AB\). (2)
