4MA0 Foundation June 2013 Paper 2 Q14
14

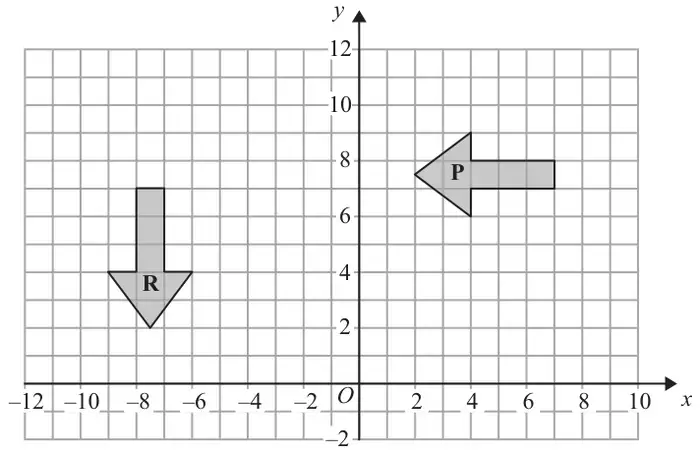

(a) On the grid, reflect shape P in the \(y\)-axis.
Label the new shape Q. (2)
Label the new shape Q. (2)
(b) Describe fully the single transformation that maps shape P onto shape R. (3)
| Scheme | Marks |
|---|---|
| Shape in correct position | B2 |
| (2) |
Notes
B2: B1 for reflection in line \(x = k\) where \((k \leqslant 2)\) tolerance of ½ sq
| Scheme | Marks |
|---|---|
| Rotation | B1 |
| 90° or quarter turn anticlockwise | B1 |
| (0,0) or O or origin | B1 |
| (3) |
Notes
B1: accept 90° or – 270°
B1: Answers that give multiple transformations score zero
