4MA0 Foundation June 2012 Paper 2 Q5

EdexcelFoundationOld spec6 marksLinear Graphs & Gradients

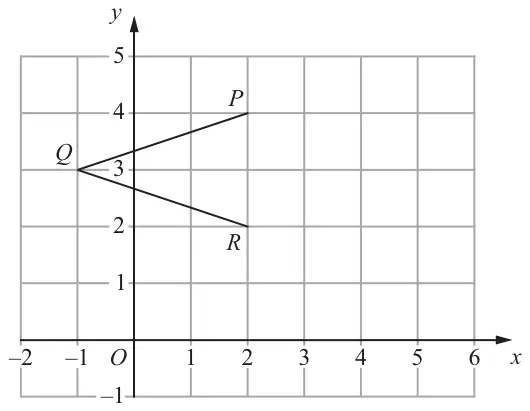

5 The diagram shows three points \(P\), \(Q\) and \(R\) on a 1 cm grid.

Grid with x from −2 to 6 and y from −1 to 5 showing points P, Q and R, with lines QP and QR drawn
(a) Write down the coordinates of \(P\). (1)
(b) Write down the coordinates of \(Q\). (1)
(c) On the grid, mark the point \(S\) so that \(PQRS\) is a rhombus. (1)
(d) Work out the area of the rhombus \(PQRS\). (2)
(e) Write down the equation of the line \(PR\). (1)
