4MA0 Foundation June 2011 Paper 1 Q3
3

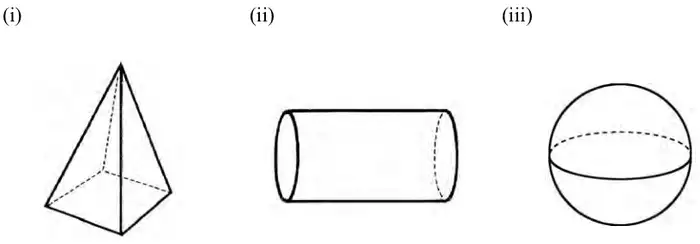

(a) Write down the mathematical name of each of these 3-D shapes.
(b)
(i) How many faces has shape (i)?
(ii) How many edges has shape (i)?

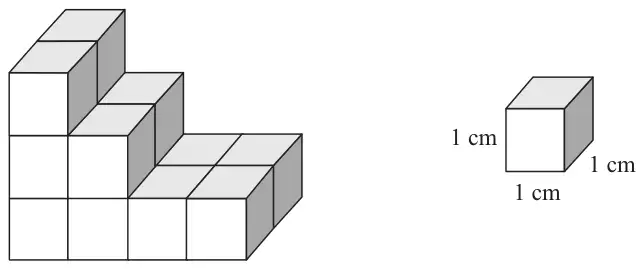

(2)(c) Here is a solid prism made from centimetre cubes.
Give the units of your answer. (3)
Diagram NOT accurately drawn
Find the volume of the solid prism.Give the units of your answer. (3)
| Scheme | Marks |
|---|---|
| (i) Answer: pyramid | B1 |
| (ii) Answer: cylinder | B1 |
| (iii) Answer: sphere | B1 |
| (3) |
Notes
B1: Award this mark for ‘pyramid’ even if accompanied by another word
Accept any recognisable spelling
| Scheme | Marks |
|---|---|
| (i) Answer: 5 | B1 |
| (ii) Answer: 8 | B1 |
| (2) |
Notes
B1: cao
B1: cao
| Scheme | Marks |
|---|---|
| 14 | B2 |
| cm3 or cubic centimetres | B1 |
| (3) | |
| (Total 8 marks) |
Notes
B2: for 14
B1 for 13 or 15
B1: indep
Also accept ml or millilitres
