4MA0 Foundation January 2017 Paper 2 Q10

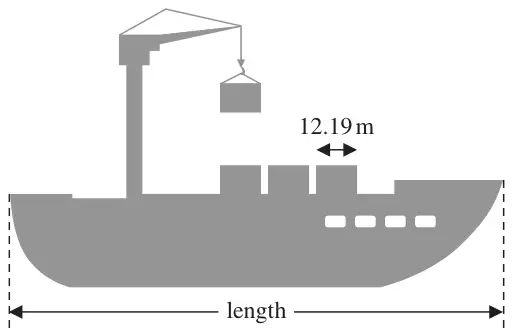

10 The diagram shows a picture of a ship and four containers.
The ship and the containers are drawn to the same scale.
The length of each container is 12.19 m.
(a) Work out an estimate for the length of the ship.
Show your working clearly. (2)
Show your working clearly. (2)
A different container is a cuboid with length 6.2 m, width 2.4 m and height 2.5 m.
(b) Work out the volume of this container. (2)
| Scheme | Marks |
|---|---|
| 12×12.19 | M1 |
| 146 | A1 |
| (2) |
Notes
M1: accept 12 or 12.2 or 12.19 multiplied by a value in the range 9 to 15
A1: accept 108 to 183
| Scheme | Marks |
|---|---|
| 6.2×2.4×2.5 | M1 |
| 37.2 | A1 |
| (2) | |
| (4 marks) |
