4MA0 Foundation January 2015 Paper 2 Q15
15

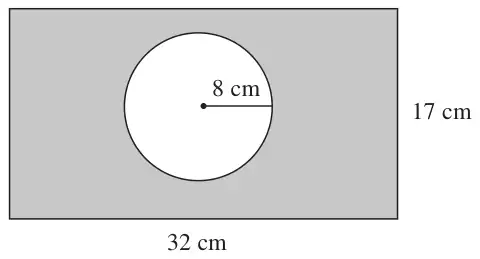

Diagram NOT accurately drawn
The diagram shows a circle inside a rectangle.
Work out the area of the shaded region.
Give your answer correct to 3 significant figures.
(3)
| Scheme | Marks |
|---|---|
| 32 × 17 or 544 or \(\pi \times 8^2\) oe or 200.9 – 201.602 | M1 |
| 32 × 17 − \(\pi \times 8^2\) | M1 |
| 343 | A1 |
| (3) | |
| (3 marks) |
Notes
M1: for the complete, correct method
A1: for awrt 343
