4MA0 Foundation January 2014 Paper 2R Q16

EdexcelFoundationOld spec6 marksTransformations of Shapes

16

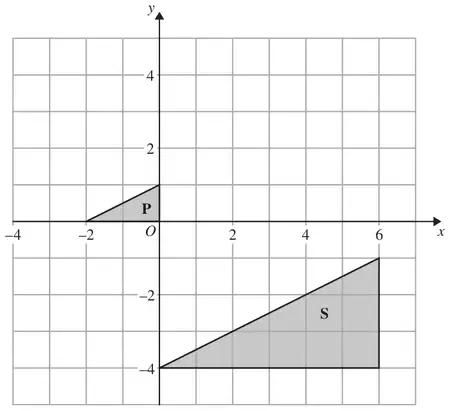

Coordinate grid with triangles P and S, x from -4 to 6 and y from -4 to 4
(a) On the grid, translate triangle P 2 squares to the right and 1 square down.
Label the new triangle Q. (1)
(b) On the grid, reflect triangle P in the line \(y = 2\)
Label the new triangle R. (2)
(c) Describe fully the single transformation that maps triangle P onto triangle S. (3)
