4MA0 Foundation January 2013 Paper 2 Q6

EdexcelFoundationOld spec6 marksLinear Graphs & Gradients

6 A 6-sided polygon is shown on a grid.

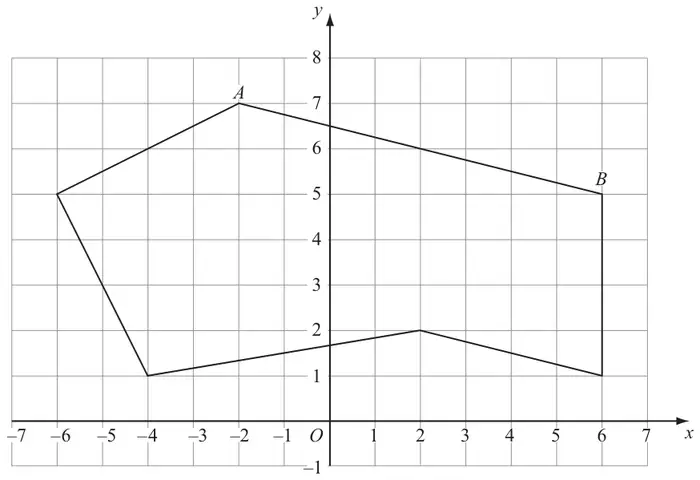

Hexagon on a grid with vertices (-6, 5), A(-2, 7), B(6, 5), (6, 1), (2, 2) and (-4, 1)
(a) Write down the mathematical name for a 6-sided polygon. (1)
(b) On the polygon, mark with arrows (>) a pair of parallel lines. (1)
(c) On the polygon, mark with crosses (×) a pair of perpendicular lines. (1)
(d) Write down the coordinates of the point \(A\). (1)
(e) Find the coordinates of the midpoint of \(AB\). (2)
