4MA0 Foundation January 2012 Paper 2 Q19
19

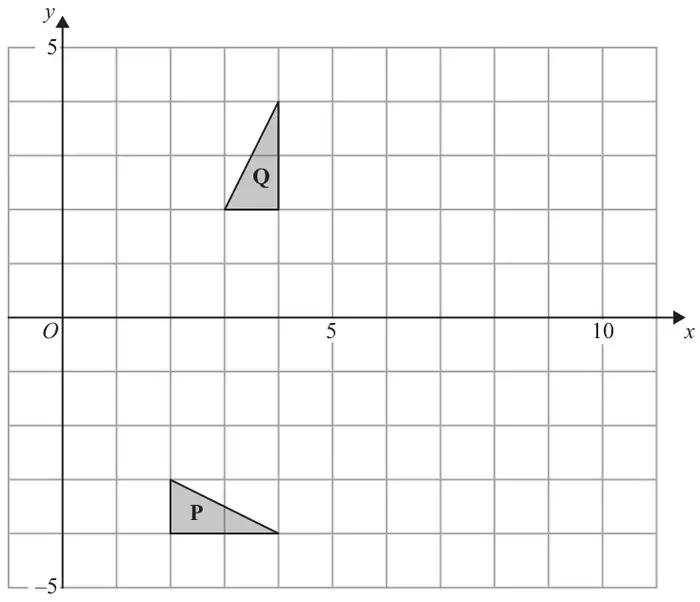

(a) Describe fully the single transformation which maps triangle P onto triangle Q. (3)
(b) On the grid, translate triangle Q 4 squares to the right and 2 squares down.
Label the new triangle R. (1)
Label the new triangle R. (1)
| Scheme | Marks |
|---|---|
| Rotation | B1 |
| 90° | B1 |
| (0, 0) | B1 |
| (3) |
Notes
B1: Also accept quarter turn or −270° (B0 for 90° clockwise)
B1: Also accept origin, O
These marks are independent but award no marks if the answer is not a single transformation
| Scheme | Marks |
|---|---|
| R correct | B1 |
| (1) | |
| (Total 4 marks) |
