1MA0 Higher November 2016 Paper 1 Q12

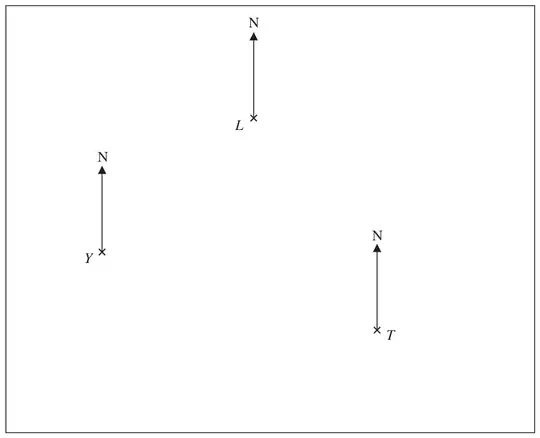

12 The diagram shows the positions of a lighthouse \(L\), a yacht \(Y\) and a tanker \(T\) on a map.
Scale 1 cm represents 10 km
(a) Measure the bearing of \(L\) from \(Y\). (1)
The tanker, \(T\), sails 80 km on a bearing of \(320^\circ\).
(b) Find the distance, in km, between the tanker and the lighthouse when the tanker is closest to the lighthouse. (2)
| Answer | Mark | Notes |
|---|---|---|
| 049 | 1 | B1 for answer in range 47 to 51 |
| Answer | Mark | Notes |
|---|---|---|
| 12 | 2 | M1 for line drawn on a bearing of \(320^\circ \pm 2^\circ\) A1 for answer in range 10 to 14 |
