1MA0 Higher November 2012 Paper 1 Q10

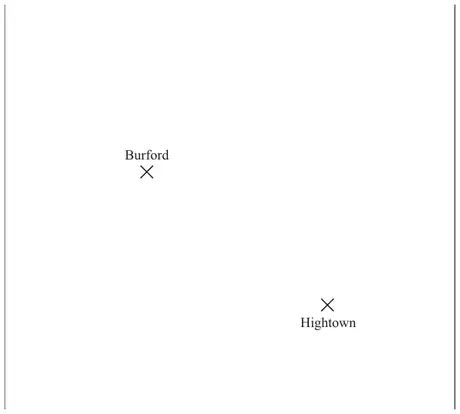

10 Here is a map.
The map shows two towns, Burford and Hightown.
Scale: 1 cm represents 10 km
A company is going to build a warehouse.
The warehouse will be less than 30 km from Burford and less than 50 km from Hightown.
Shade the region on the map where the company can build the warehouse. (3)
| Answer | Mark | Notes |
|---|---|---|
| Region shaded | 3 | B1 for circle arc of radius 3cm (± 2mm) centre Burford B1 for circle arc of radius 5 cm (± 2mm) centre Hightown B1 for overlapping regions of circle arcs shaded |
