1MA0 Higher June 2013 Paper 1 Q7

EdexcelHigherOld spec5 marksTransformations of Shapes

7

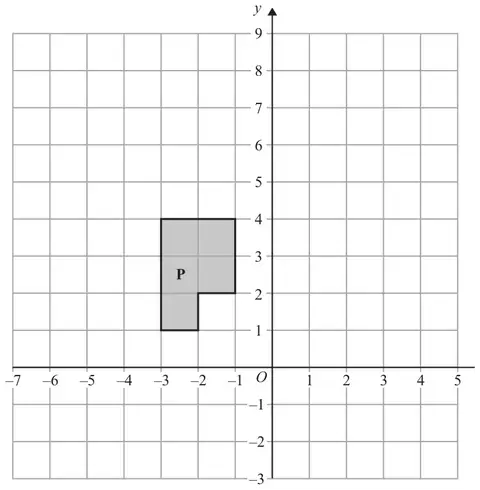

Grid with x from -7 to 5 and y from -3 to 9 showing an L-shaped shape P with vertices (-3, 1), (-2, 1), (-2, 2), (-1, 2), (-1, 4) and (-3, 4)
(a) Translate shape P by the vector \(\begin{pmatrix} 5 \\ -2 \end{pmatrix}\) (2)

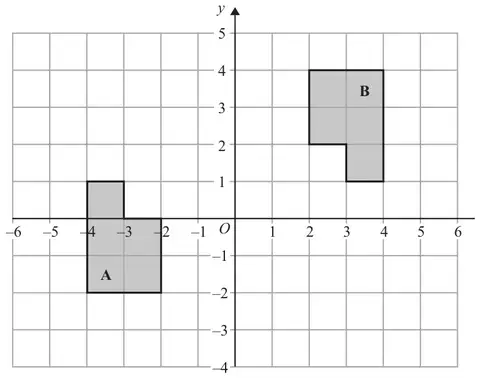

Grid with x from -6 to 6 and y from -4 to 5 showing L-shaped shapes A and B
(b) Describe fully the single transformation that maps shape A onto shape B. (3)
