1MA0 Higher June 2013 Paper 1 Q13

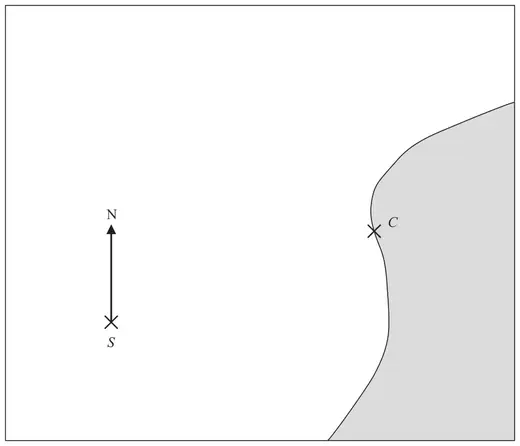

*13 Here is a map.
The position of a ship, \(S\), is marked on the map.
Scale 1 cm represents 100 m
Point \(C\) is on the coast.
Ships must not sail closer than 500 m to point \(C\).
The ship sails on a bearing of 037°
Will the ship sail closer than 500 m to point \(C\)?
You must explain your answer. (3)
| Answer | Mark | Notes |
|---|---|---|
| Yes with explanation | 3 | M1 for bearing \(\pm 2^\circ\) within overlay M1 for use of scale to show arc within overlay or line drawn from \(C\) to ship’s course with measurement C1(dep M1) for comparison leading to a suitable conclusion from a correct method |
