1MA0 Foundation March 2013 Paper 2 Q20

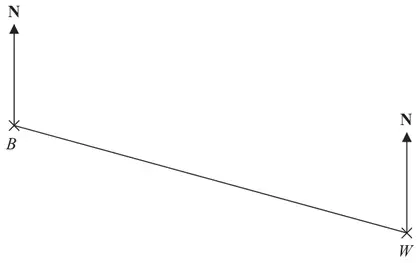

20 The diagram shows the positions of two villages, Beckhampton (\(B\)) and West Kennett (\(W\)).
Scale: 4 cm represents 1 km.
(a) Work out the real distance, in km, of Beckhampton from West Kennett. (2)
The village, Avebury (\(A\)), is on a bearing of 038° from Beckhampton.
On the diagram, \(A\) is 6 cm from \(B\).
(b) On the diagram, mark \(A\) with a cross (\(\times\)).
Label the cross \(A\). (2)
Label the cross \(A\). (2)
| Answer | Mark | Notes |
|---|---|---|
| 2.5 | 2 | M1 for 10 (cm) or “10” \(\div\) 4 A1 for 2.45 – 2.55 |
| Answer | Mark | Notes |
|---|---|---|
| A marked on diagram | 2 | M1 for a point marked (or line drawn) on a bearing of \(038^\circ\) from either point \(B\) or point \(W\), OR for a point marked (or arc drawn) 6 cm from \(B\) A1 for the position of Avebury marked (accept without label if not ambiguous) |
