1MA0 Foundation June 2013 Paper 1 Q26
26

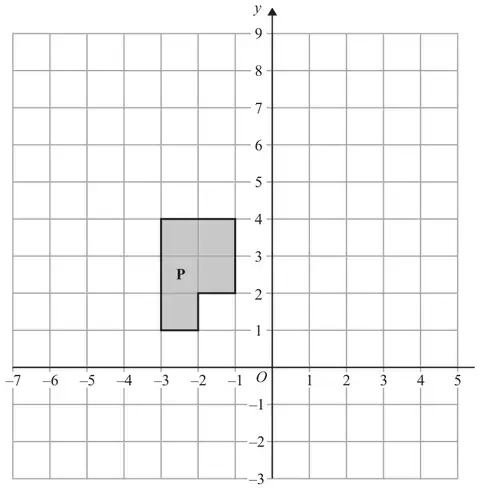

(a) Translate shape P by the vector \(\begin{pmatrix} 5 \\ -2 \end{pmatrix}\) (2)

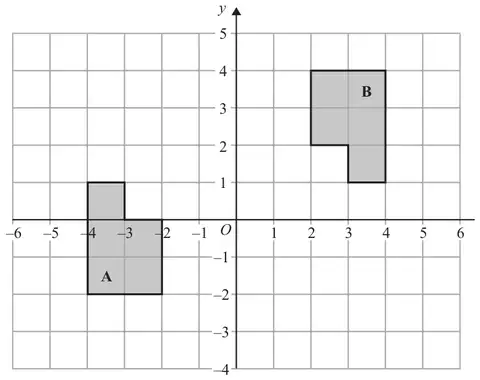

(b) Describe fully the single transformation that maps shape A onto shape B. (3)
| Working | Answer | Mark | Notes |
|---|---|---|---|
| (4, 0) (3, 0) (3, \(-1\)) (2, \(-1\)) (2, 2) (4, 2) | Correct position | 2 | B2 for correct shape in correct position (B1 for any incorrect translation of correct shape) |
| Answer | Mark | Notes |
|---|---|---|
| Rotation 180° (0, 1) | 3 | B1 for rotation B1 for 180° (ignore direction) B1 for (0, 1) OR B1 for enlargement B1 for scale factor \(-1\) B1 for (0, 1) (NB: a combination of transformations gets B0) |
