D1 June 2006 Q7

EdexcelOld spec14 marksFlows in Networks

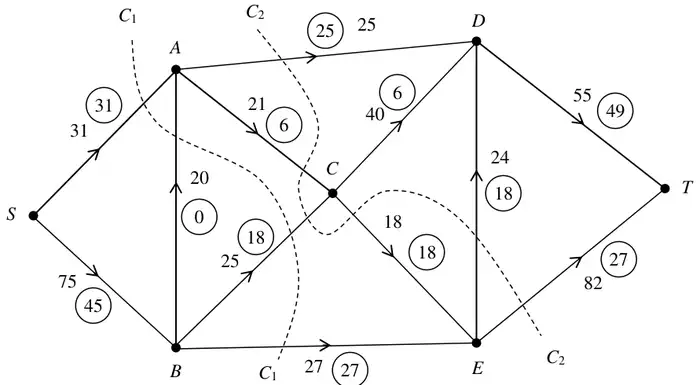

Figure 5: capacitated directed network from S to T with an initial flow in circles and cuts C1 and C2 — Figure 5

Figure 5 shows a capacitated, directed network. The capacity of each arc is shown on each arc. The numbers in circles represent an initial flow from \(S\) to \(T\).

Two cuts \(C_1\) and \(C_2\) are shown on Figure 5.

(a) Write down the capacity of each of the two cuts and the value of the initial flow. (3)

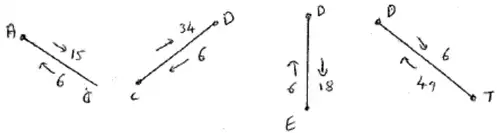

(b) Complete the initialisation of the labelling procedure on Diagram 1 by entering values along arcs \(AC\), \(CD\), \(DE\) and \(DT\). (2)

(c) Hence use the labelling procedure to find a maximal flow through the network. You must list each flow-augmenting path you use, together with its flow. (5)

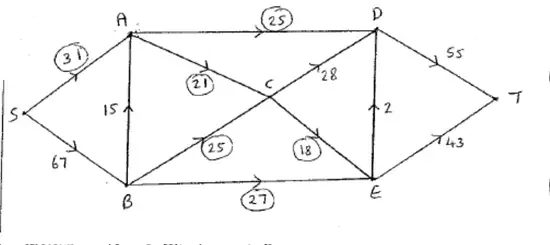

(d) Show your maximal flow pattern on Diagram 2. (2)

(e) Prove that your flow is maximal. (2)

Scheme	Marks
\(C_1 = 103,\quad C_2 = 177,\quad\) flow \(= 76\)	B1, B1, B1
	(3)

Scheme	Marks
	M1 A1
	(2)

Mark scheme (c)

Scheme	Marks
e.g. \(SBCDT - 6\) \(SBCDET - 1\) \(SBACDET - 15\)	M1 A3,2,1,0
max. flow is 98	B1
	(5)

Notes

M1 1 correct route + flow found (flow > 15 gets M0) (condone initial flow augmenting routes only if clearly separated from the rest)

A3 all routes + flows found to 22 more

A2 2 routes + flows found to 12+

A1 1 route + flow found to 6+

B1 98 cao (linked in the scheme to the M1 in (e))

Scheme	Marks
maximum flow = minimum cut cut through \(AD, AC, BC\) and \(BE\)	M1 A1
	(2)
	(14 marks)
