Higher June 2025 Paper 2 Q2

EdexcelCurrent spec5 marksTransformations of Shapes

2

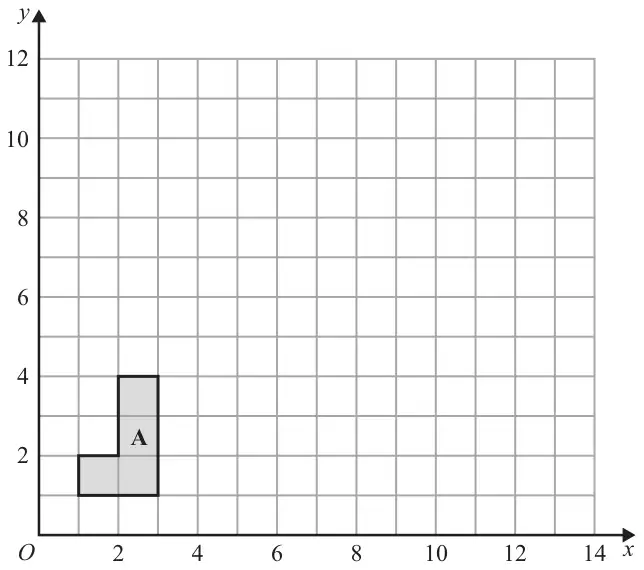

Grid with x from 0 to 14 and y from 0 to 12 showing an L-shaped shape A with vertices (1, 1), (3, 1), (3, 4), (2, 4), (2, 2) and (1, 2)

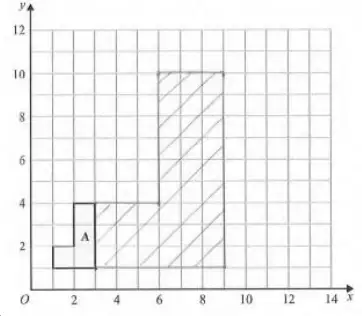

(a) On the grid, enlarge shape A with scale factor 3 and centre \((0, 1)\) (2)

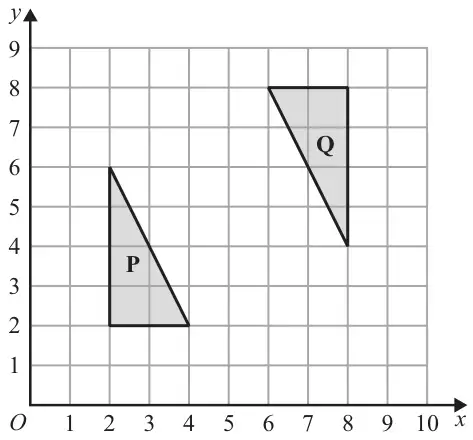

Grid with x from 0 to 10 and y from 0 to 9 showing triangle P with vertices (2, 2), (4, 2) and (2, 6), and triangle Q with vertices (8, 8), (6, 8) and (8, 4)
(b) Describe fully the single transformation that maps triangle P onto triangle Q (3)
