Higher January 2022 Paper 2 Q5

EdexcelHigherCurrent spec4 marksConstructions & Bearings

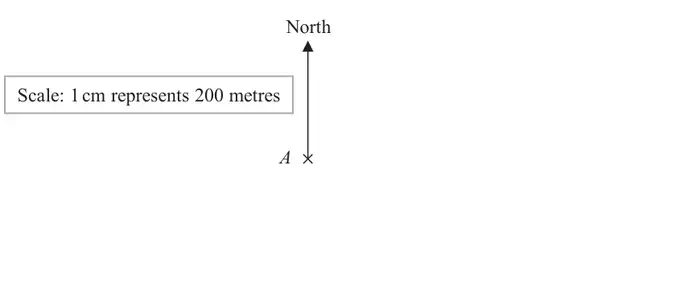

5 The scale diagram shows the position on a map of a house, \(A\)

Scale diagram: house A is marked with a cross, with a North arrow drawn upwards from A; a box reads Scale: 1 cm represents 200 metres. There is blank space to the right of and below A

House \(C\) is on a bearing of 110° from \(A\)
The distance from \(A\) to \(C\) is 700 m

(a) Mark the position of \(C\) on the diagram with a cross (×)
Label your cross \(C\) (3)
(b) Write the scale of the map in the form 1 : \(n\) (1)
