Higher January 2022 Paper 2 Q13

EdexcelHigherCurrent spec3 marksLinear Inequalities

13 The shaded region in the diagram is bounded by three lines.
The equation of one of the lines is given.

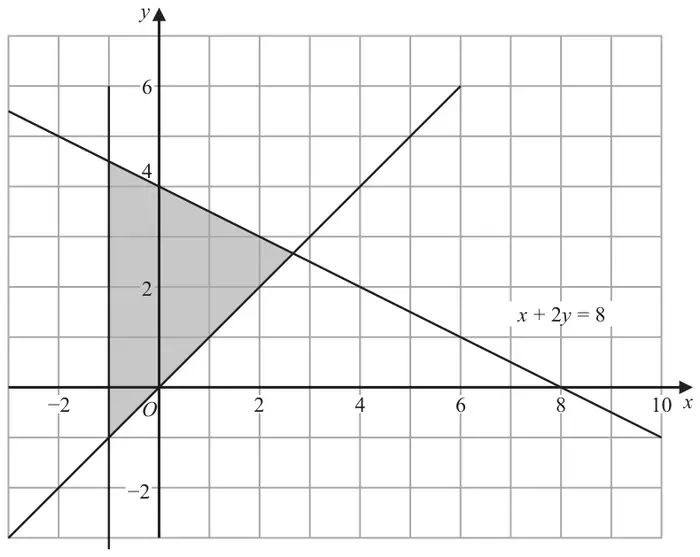

Grid with x from −3 to 10 and y from −3 to 7 showing three lines: the vertical line x = −1, the line y = x through the origin, and the line x + 2y = 8. The triangular region between them, to the right of x = −1, above y = x and below x + 2y = 8, is shaded

Write down three inequalities that define the shaded region.

(3)
