Higher January 2021 Paper 2 Q13

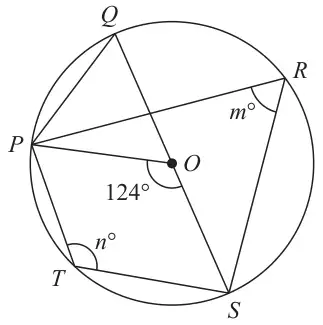

13 \(P\), \(Q\), \(R\), \(S\) and \(T\) are points on a circle with centre \(O\).

Diagram NOT accurately drawn
\(QOS\) is a diameter of the circle.
angle \(POS = 124^\circ\) angle \(PRS = m^\circ\) angle \(PTS = n^\circ\)
(a) Find the value of
(i) \(m\)
(ii) \(n\) (2)
(b) Find the size of angle \(QPO\). (1)
| Scheme | Marks |
|---|---|
| (i) Answer: 62 | B1 |
| (ii) Answer: 118 | B1ft |
| (2) |
Notes
B1ft: 180 – their (a)(i)
| Scheme | Marks |
|---|---|
| 62 | B1 |
| (1) | |
| (3 marks) |
