Foundation November 2020 Paper 1 Q13

EdexcelCurrent spec5 marksTransformations of Shapes

13

(a) On the grid, reflect the shaded triangle in the line with equation \(y = 2\)

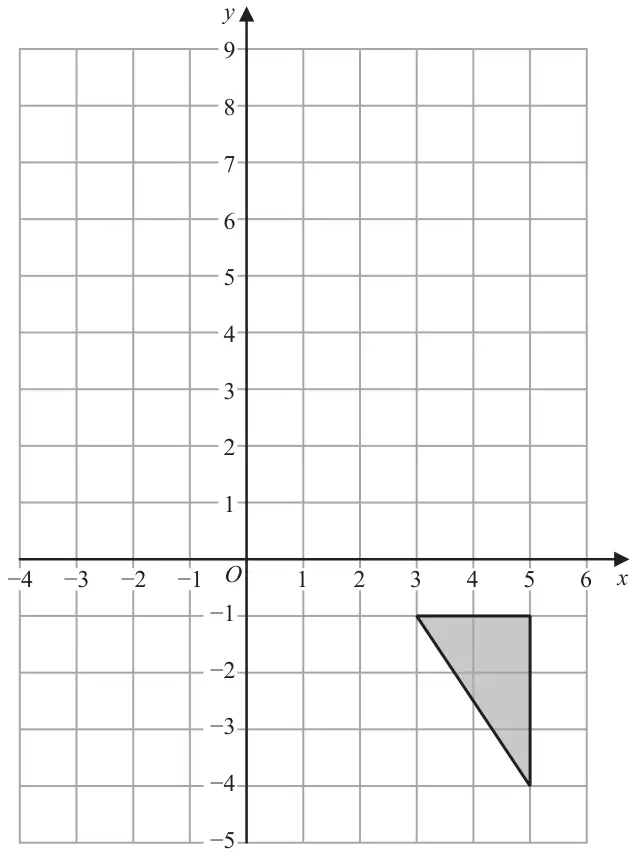

Coordinate grid with x from −4 to 6 and y from −5 to 9; the shaded triangle has vertices (3, −1), (5, −1) and (5, −4)
(2)

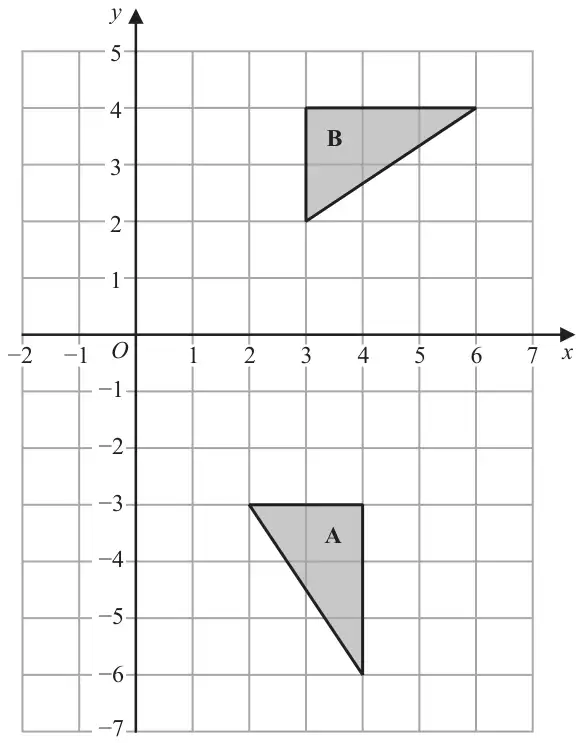

Coordinate grid with x from −2 to 7 and y from −7 to 5; triangle A has vertices (2, −3), (4, −3) and (4, −6), and triangle B has vertices (3, 2), (3, 4) and (6, 4)
(b) Describe fully the single transformation that maps triangle A onto triangle B. (3)
