Foundation June 2025 Paper 2 Q16

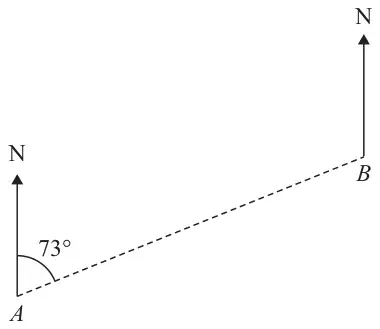

16 The diagram shows the positions of two villages, \(A\) and \(B\)
Diagram NOT accurately drawn
The bearing of \(B\) from \(A\) is 073°
Work out the bearing of \(A\) from \(B\)
(2)
| Scheme | Marks |
|---|---|
| 180 + 73 or 360 – (180 – 73) or 360 – 107 or 270 – (90 – 73) or 270 – 17 or 270 – (180 − 90 – 73) | M1 |
| Working not required, so correct answer scores full marks (unless from obvious incorrect working) Answer: 253 | A1 |
| (2) | |
| (2 marks) |
Notes
M1: or for 73 or for 107 or for 253 seen in the correct place on the diagram by point \(B\) or correctly identified by labelling
