Foundation June 2023 Paper 2 Q9

EdexcelFoundationCurrent spec2 marksConstructions & Bearings

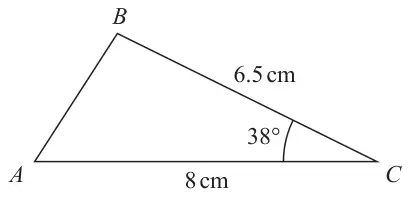

9 Here is a sketch of triangle \(ABC\)

Sketch of triangle ABC with AC = 8 cm, BC = 6.5 cm and angle ACB = 38 degrees

Diagram NOT accurately drawn

\(AC\) = 8 cm \(BC\) = 6.5 cm angle \(ACB\) = 38°

In the space below, make an accurate drawing of triangle \(ABC\)
The line \(AC\) has been drawn for you.

(2)

Mark scheme

Scheme	Marks
Correct triangle	B2
	(2)
	(2 marks)

Notes

B2: Correct triangle within tolerance
If not B2, then B1 for \(CB\) of length 6.5 cm or angle \(ACB\) = 38°
Allow \(CB\) length 6.3 cm to 6.7 cm and angle \(ACB\) = 36° to 40°
