Foundation June 2023 Paper 2 Q16

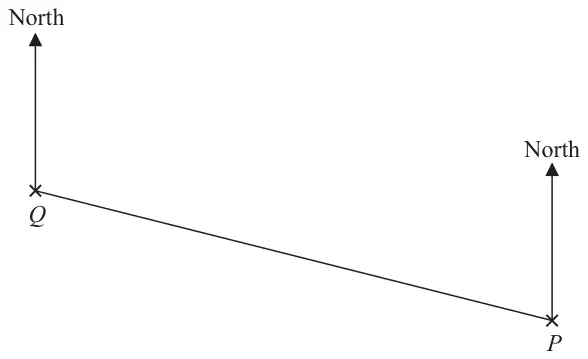

16 The scale drawing shows the positions of two airports \(P\) and \(Q\)
scale: 1 cm represents 50 km
(a) Find, by measuring, the bearing of \(P\) from \(Q\) (1)
A small plane flies directly from \(P\) to \(Q\)
The plane takes 2 hours to fly from \(P\) to \(Q\)
(b) Work out the average speed of the plane.
Give your answer in km/h (3)
Give your answer in km/h (3)
| Scheme | Marks |
|---|---|
| 104 | B1 |
| (1) |
Notes
B1: accept 102 – 106
| Scheme | Marks |
|---|---|
| eg \(\text{``}{9.4}\text{''} \times 50\) (= 470) [460 – 480] or eg \(\text{``}{9.4}\text{''} \div 2\) (= 4.7) [4.6 – 4.8] | M1 |
| \(\text{``}{9.4}\text{''} \times 50 \div 2\) | M1 |
| Correct answer scores full marks (unless from obvious incorrect working) Answer: 235 | A1 |
| (3) | |
| (4 marks) |
Notes
M1: Their measurement × 50 or ÷2
Working may be shown by diagram
M1: Their measurement × 50 and ÷2
Working may be shown by diagram
A1: accept 230 – 240
