Foundation June 2023 Paper 1R Q26
26

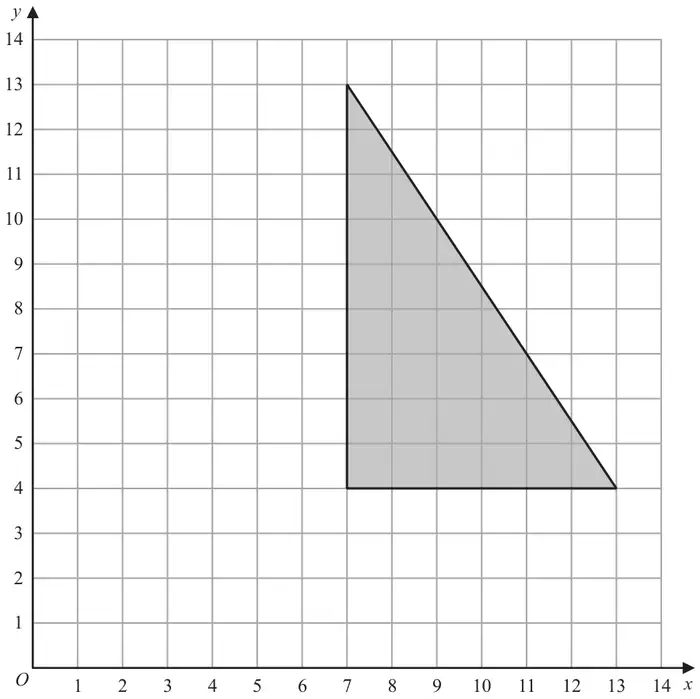

On the grid, enlarge the shaded shape with scale factor \(\dfrac{1}{3}\) and centre (1, 7)
(2)
| Scheme | Marks |
|---|---|
| Triangle with vertices (3, 6) (3, 9) (5, 6) | B2 |
| (2) | |
| (2 marks) |
Notes
B2: for a fully correct shape with correct orientation and in the correct position.
(B1 for a shape of correct size and orientation
or 2 or 3 points plotted correctly)
