Foundation June 2019 Paper 2R Q10

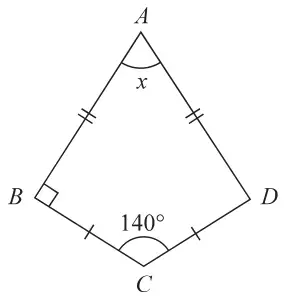

10 The diagram shows kite \(ABCD\).
Diagram NOT accurately drawn
(a) Work out the size of the angle marked \(x\). (2)

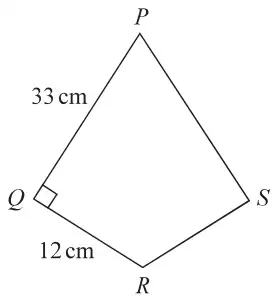

The diagram shows kite \(PQRS\).
Diagram NOT accurately drawn
(b) Work out the area of kite \(PQRS\). (2)
| Scheme | Marks |
|---|---|
| 360° − (90° + 90° + 140°) or 2 × (180° − 90° − 70°) | M1 |
| 40° | A1 |
| (2) |
Notes
M1: or 180 – 140 or 90 + 90 + 140 + \(x\) = 360
| Scheme | Marks |
|---|---|
| 33 × 12 or \(\dfrac{1}{2} \times 33 \times 12 \times 2\) | M1 |
| 396 | A1 |
| (2) | |
| (4 marks) |
