Foundation June 2019 Paper 1 Q11

EdexcelFoundationCurrent spec4 marksTransformations of Shapes

11

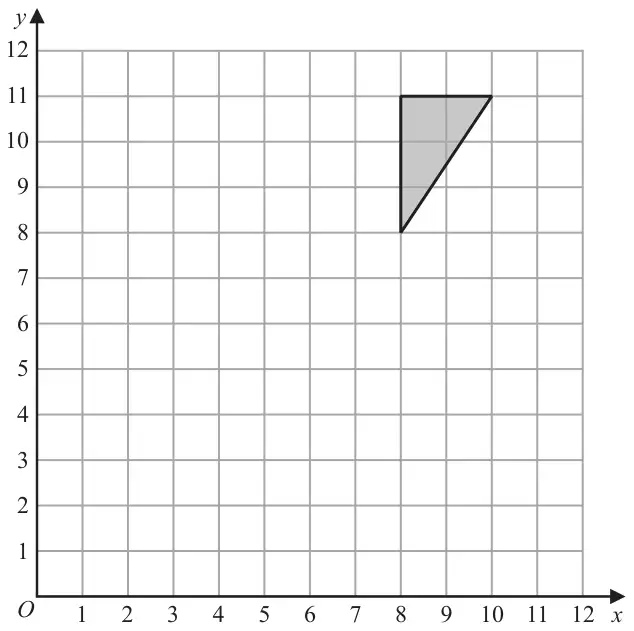

Grid with x and y from 0 to 12; shaded triangle with vertices (8, 8), (8, 11) and (10, 11)
(a) On the grid above, rotate the triangle 180° about (7, 6) (2)

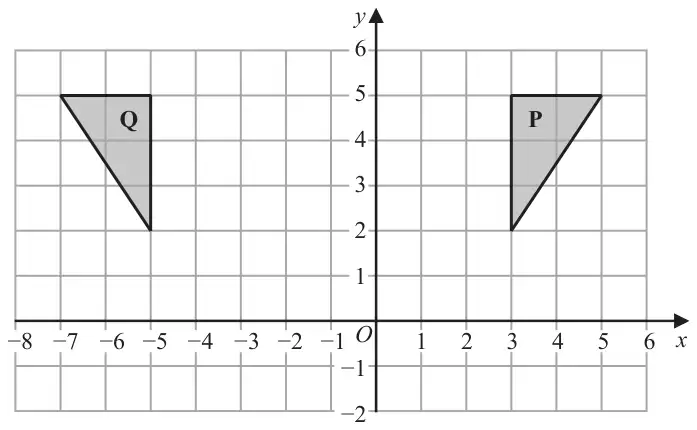

Grid with x from −8 to 6 and y from −2 to 6; triangle P with vertices (3, 2), (3, 5), (5, 5); triangle Q with vertices (−5, 2), (−5, 5), (−7, 5)
(b) Describe fully the single transformation that maps triangle P onto triangle Q. (2)
