Foundation June 2018 Paper 2 Q15

EdexcelCurrent spec3 marksAngles (Including Parallel Lines)

15

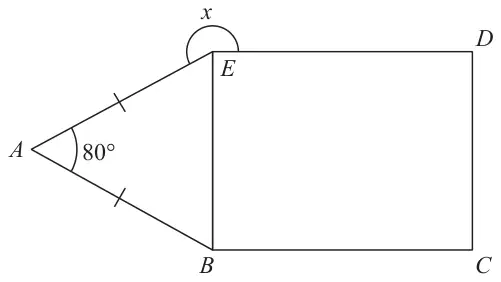

Rectangle BCDE with isosceles triangle ABE attached on side BE; AB = AE marked; angle BAE is 80 degrees; reflex angle x marked at E outside the shape

Diagram NOT accurately drawn

\(BCDE\) is a rectangle.
\(ABE\) is an isosceles triangle.

\(AB = AE\)
Angle \(BAE\) = 80°

Work out the size of angle \(x\).

(3)
