Foundation June 2018 Paper 1R Q17

EdexcelCurrent spec5 marksTransformations of Shapes

17

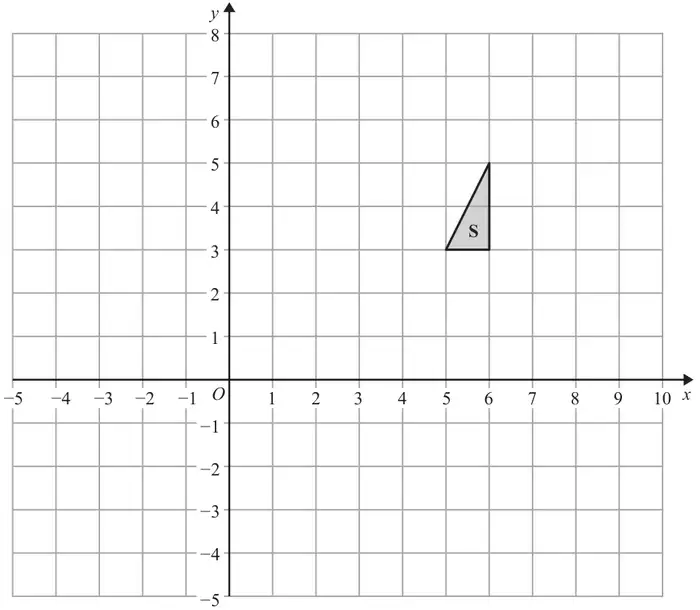

Grid with x from -5 to 10 and y from -5 to 8; triangle S has vertices (5, 3), (6, 3) and (6, 5)

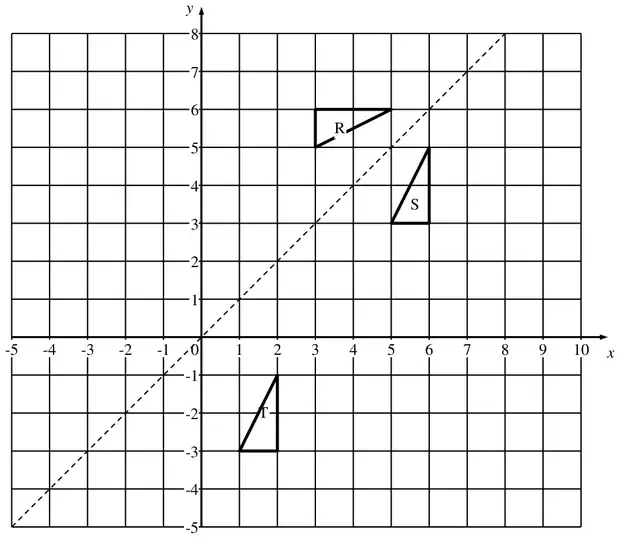

(a) Reflect triangle S in the line \(y = x\)
Label the new triangle R. (2)
(b) Translate triangle S by the vector \(\begin{pmatrix} -4 \\ -6 \end{pmatrix}\)
Label the new triangle T. (1)

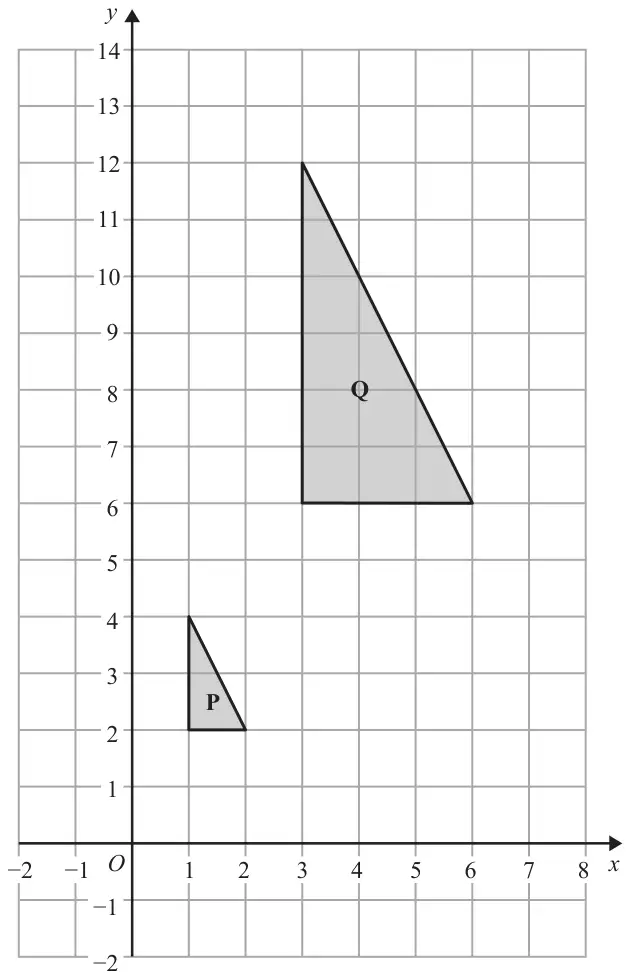

Grid with x from -2 to 8 and y from -2 to 14; triangle P has vertices (1, 2), (2, 2) and (1, 4); triangle Q has vertices (3, 6), (6, 6) and (3, 12)
(c) Describe fully the single transformation that maps triangle P onto triangle Q. (2)
