Foundation January 2021 Paper 2R Q16

EdexcelCurrent spec6 marksTransformations of Shapes

16 Here is a shape P drawn on a grid of squares.

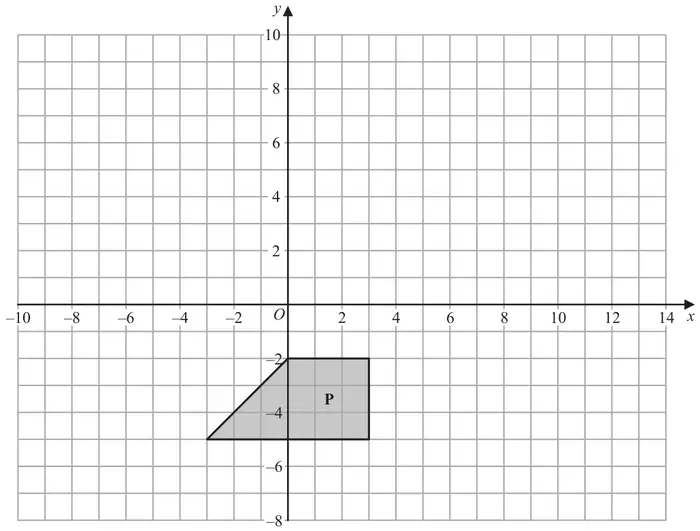

Coordinate grid with x from −10 to 14 and y from −8 to 10; shaded quadrilateral P with vertices (0, −2), (3, −2), (3, −5) and (−3, −5)
(a) On the grid, rotate shape P 180° about the point (–3, 2)
Label the new shape Q. (2)
(b) On the grid, translate shape P by the vector \(\begin{pmatrix} 10 \\ 8 \end{pmatrix}\)
Label the new shape R. (1)

Here are triangle T and triangle U drawn on a grid of squares.

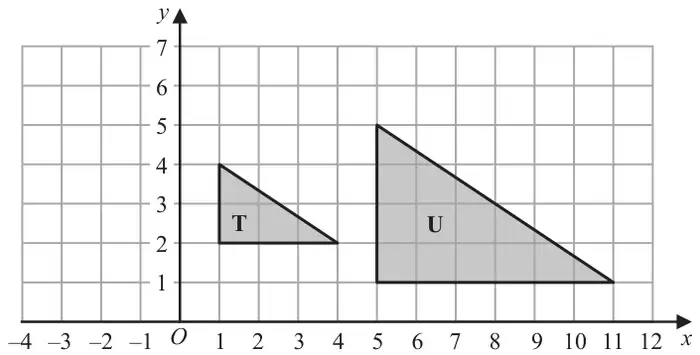

Coordinate grid with x from −4 to 12 and y from 0 to 7; triangle T with vertices (1, 2), (1, 4), (4, 2) and triangle U with vertices (5, 1), (5, 5), (11, 1)
(c) Describe fully the single transformation that maps triangle T onto triangle U. (3)
