Foundation January 2021 Paper 2 Q13

EdexcelCurrent spec3 marksConstructions & Bearings

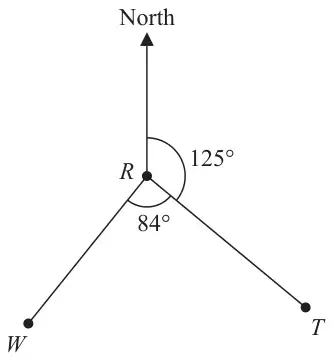

13 The diagram shows the positions of three villages, \(R\), \(T\) and \(W\).

North line at R; angle 125 degrees clockwise from North to RT and angle 84 degrees between RT and RW

Diagram NOT accurately drawn

(a) Work out the bearing of village \(W\) from village \(R\). (1)

(b) Work out the bearing of village \(R\) from village \(T\). (2)

Scheme	Marks
209	B1
	(1)

Mark scheme (b)

Scheme	Marks
	M1
305	A1
	(2)
	(3 marks)

Notes

M1: For showing or stating N\(TR\) = 180 – 125 = 55°(where N is North at \(T\)) or
\(SRT\) = 180 – 125 = 55° (where S is South at \(R\)) or \(RTS\) = 125°(where S is south of \(T\))
or N\(T\)(SE) = 125°(where N is north of \(T\) and SE is South-East of \(T\))
or for 360 – (180 – 125) or 180 + 125
