Foundation January 2020 Paper 1R Q8

EdexcelCurrent spec4 marks2D Area & Perimeter

8 Here is a rectangle.

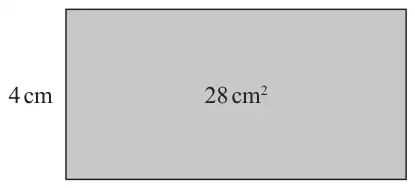

Shaded rectangle with height 4 cm and area 28 cm² written inside

Diagram NOT accurately drawn

The area of the rectangle is 28 cm2

Three of these rectangles are used to make the shape below.

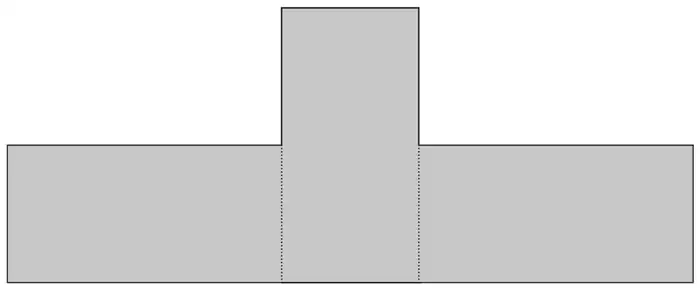

A T-shape upside down: two rectangles placed horizontally, one each side of a third rectangle standing upright, with all three bottoms in line; the upright rectangle sticks up above the other two

Diagram NOT accurately drawn

Work out the perimeter of the shape.

(4)
