Foundation January 2020 Paper 1R Q5

EdexcelCurrent spec4 marksBar Charts & Pictograms

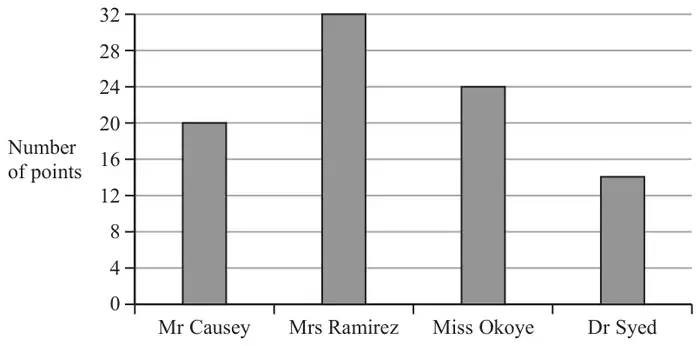

5 The bar chart gives information about the number of points scored by each of four teachers in a quiz.

Bar chart of number of points, vertical axis 0 to 32 in steps of 4: Mr Causey 20, Mrs Ramirez 32, Miss Okoye 24, Dr Syed 14

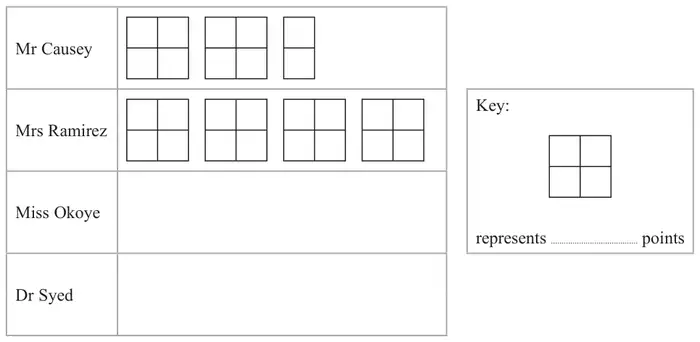

Joseph starts to draw a pictogram, shown below, for this information.
The pictogram shows the number of points scored by Mr Causey and the number of points scored by Mrs Ramirez.

Pictogram. Mr Causey: 2 whole symbols and a half symbol. Mrs Ramirez: 4 whole symbols. Miss Okoye and Dr Syed: empty rows. Each whole symbol is a square divided into 4 small squares. Key: one whole symbol represents …… points

Complete the pictogram, including the key.

(4)

Miss Okoye: 3 whole symbols. Dr Syed: 1 whole symbol and 3 of the 4 small squares of another — Mark scheme

Scheme	Marks
eg 20 ÷ 2.5 (= 8) or 32 ÷ 4 (= 8) or 20 ÷ 10 (= 2) or 32 ÷ 16 (= 2)	M1
8	A1
eg 24 ÷ [their 8] or 14 ÷ [their 8] or 24 ÷ [their 2] or 14 ÷ [their 2]	M1
Miss Okoye: 3 whole symbols Dr Syed: 1 whole symbol and three quarters of a symbol	A1
	(4)
	(4 marks)

Notes
