Foundation January 2019 Paper 1 Q16

EdexcelFoundationCurrent spec6 marksTransformations of Shapes

16

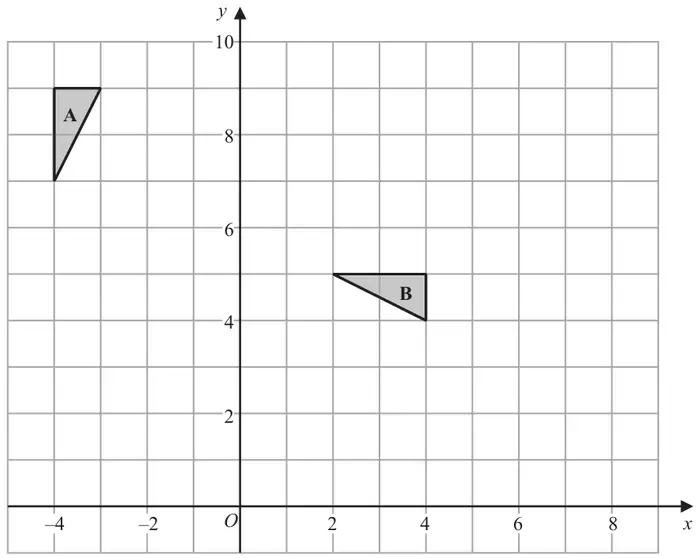

Grid with x from −4 to 9 and y from −1 to 10 showing triangle A with vertices (−4, 9), (−3, 9), (−4, 7) and triangle B with vertices (2, 5), (4, 5), (4, 4)
(a) Describe fully the single transformation that maps triangle A onto triangle B. (3)
(b) On the grid, translate triangle A by the vector \(\begin{pmatrix} 2 \\ -5 \end{pmatrix}\)
Label the new triangle C. (1)

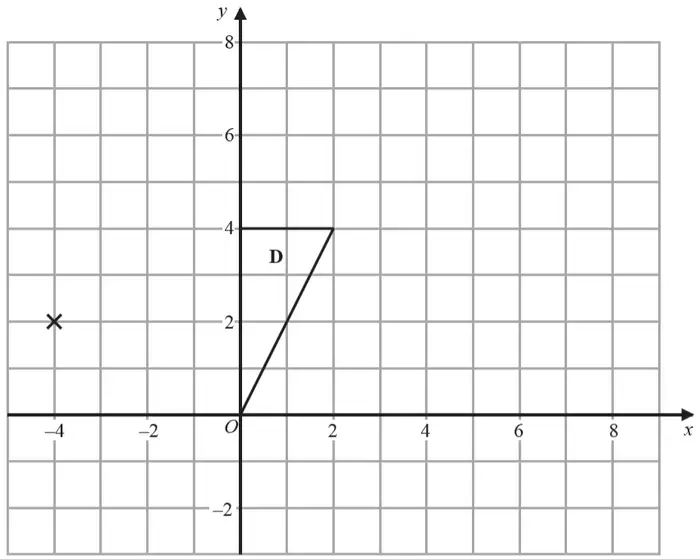

Grid with x from −5 to 9 and y from −3 to 8 showing triangle D with vertices (0, 0), (0, 4), (2, 4) and a cross at (−4, 2)
(c) On the grid, enlarge triangle D with scale factor \(\dfrac{1}{2}\) and centre \((-4, 2)\) (2)
