Foundation November 2023 Paper 2 Q17
17 Here are the heights, in cm, of 16 sunflowers.
| 168 | 173 | 172 | 180 | 162 | 191 | 183 | 160 |
| 178 | 184 | 197 | 177 | 172 | 186 | 188 | 180 |

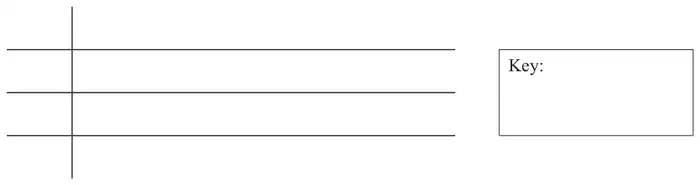

Show this information in a stem and leaf diagram. (3)
| Answer | Mark | Mark scheme | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
or 160|0 = 160 | B2 | for a fully correct ordered diagram | ||||||||
| (B1 | for a complete unordered diagram or for an ordered diagram with at most one error or omission) | |||||||||
| B1 | (indep) for correct key, eg 16|0 or 160|0 represents 160 |
Additional guidance
Accept stem of 160, 170, 180, 190
Can be in reverse vertical order (with matching leaves) eg 19, 18, 17, 16
Errors can be omissions; one number in the wrong position is one error.
Key must be consistent with the stem.
