Foundation November 2017 Paper 2 Q20
20

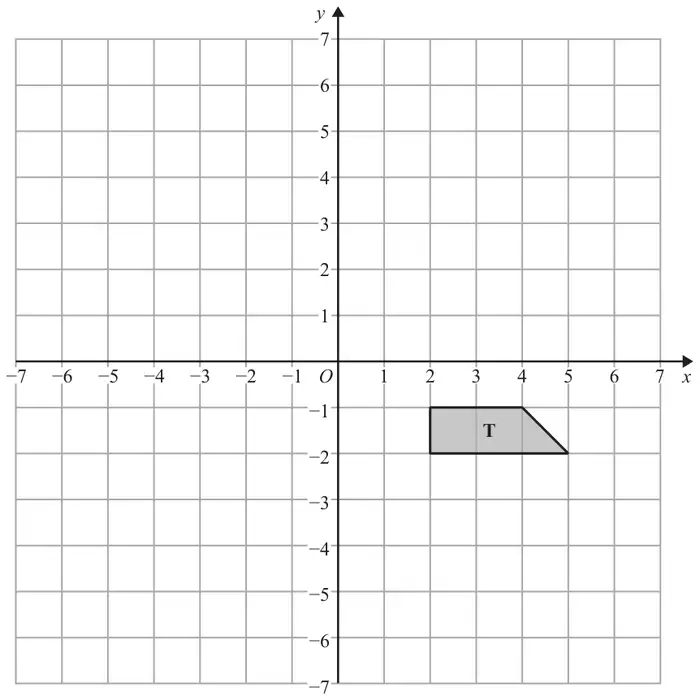

(a) Rotate trapezium T \(180^\circ\) about the origin.
Label the new trapezium A. (1)
Label the new trapezium A. (1)
(b) Translate trapezium T by the vector \(\begin{pmatrix} -1 \\ -3 \end{pmatrix}\)
Label the new trapezium B. (1)
Label the new trapezium B. (1)
| Answer | Mark | Notes |
|---|---|---|
| \((-2, 1)\) \((-4, 1)\) \((-2, 2)\) \((-5, 2)\) | B1 | Shape labelled A |
| Answer | Mark | Notes |
|---|---|---|
| \((1, -4)\) \((3, -4)\) \((1, -5)\) \((4, -5)\) | B1 | Shape labelled B |
