Foundation June 2024 Paper 3 Q14
14 The table gives information about the drinks people ordered in a cafe.
| Drink | Number of people |
|---|---|
| Coffee | 30 |
| Hot chocolate | 10 |
| Tea | 50 |

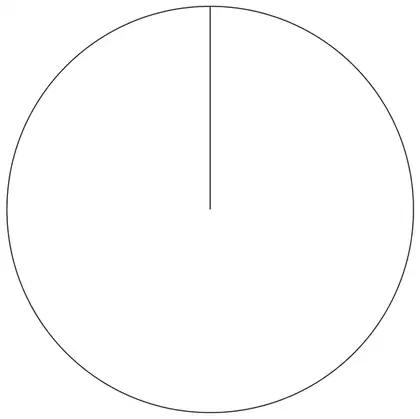

Draw an accurate pie chart for this information. (3)
| Answer | Mark | Mark scheme |
|---|---|---|
| Pie chart drawn and labelled | M1 | for a method to calculate one angle eg \(\dfrac{30}{30 + 10 + 50} \times 360\ (= 120)\) or \(\dfrac{10}{30 + 10 + 50} \times 360\ (= 40)\) or \(\dfrac{50}{30 + 10 + 50} \times 360\ (= 200)\) oe |
| A1 | for all 3 angles correctly calculated or at least one correct and accurately drawn angle | |
| A1 | for a fully correct labelled pie chart |
Additional guidance
Three angles correct in table is enough for this mark regardless of angles in the diagram.
Each sector must be labelled with the associated drink, not angle size.
