Foundation June 2023 Paper 3 Q16

EdexcelCurrent spec2 marksTransformations of Shapes

16

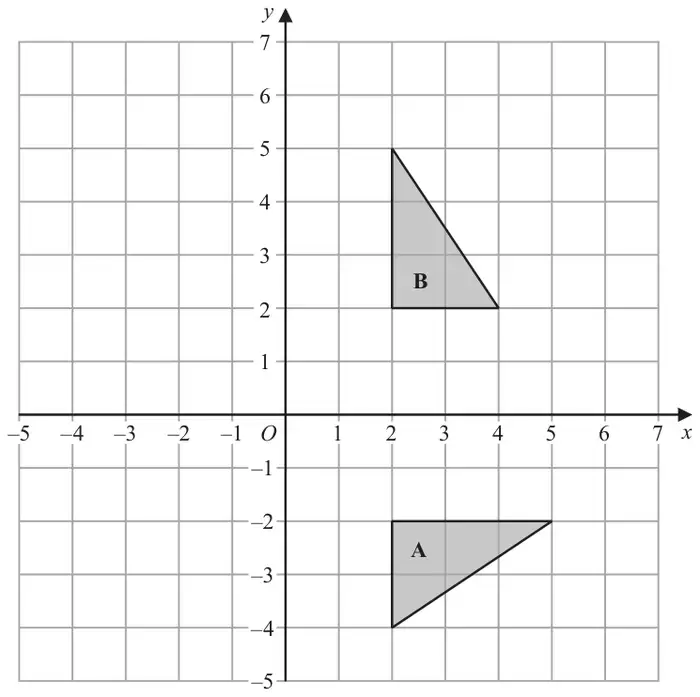

Grid with x from -5 to 7 and y from -5 to 7. Shape A is a triangle with vertices (2, -2), (5, -2) and (2, -4). Shape B is a triangle with vertices (2, 2), (2, 5) and (4, 2)

Describe fully the single transformation that maps shape A onto shape B. (2)
