Foundation June 2018 Paper 2 Q12
12 A group of football fans were asked what their half time snack was.
The table below gives information about their answers.
| Snack | Number of fans |
|---|---|
| burger | 11 |
| pie | 17 |
| hot dog | 8 |

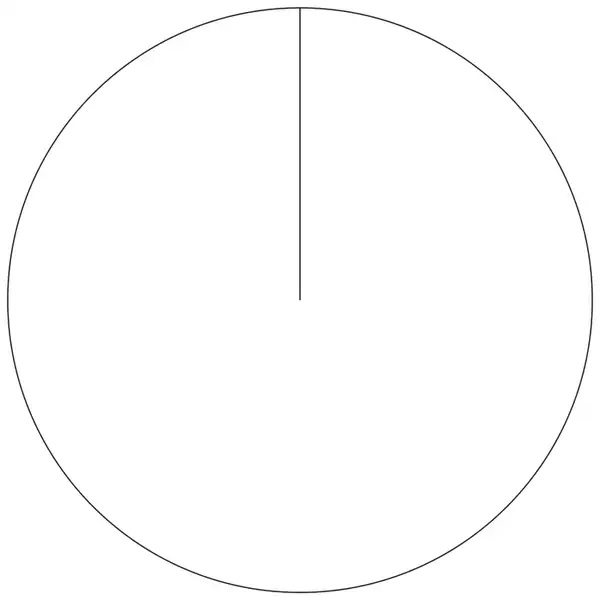

Draw an accurate pie chart for this information. (3)
| Answer | Mark | Mark scheme |
|---|---|---|
| Correct pie chart | M1 | for method to find at least one angle eg B: \(360 \div \text{``}36\text{''} \times 11\ (= 110)\) or P: \(360 \div \text{``}36\text{''} \times 17\ (= 170)\) or HD: \(360 \div \text{``}36\text{''} \times 8\ (= 80)\) |
| A1 | for at all 3 angles correctly calculated OR at least one accurately drawn angle | |
| A1 | for a fully correct labelled pie chart |
Additional guidance
Accept numbers if present in Number of fan column eg 0 added to a number is acceptable for this mark.
Labels as “snacks” from table not just angle size.
