Foundation June 2017 Paper 2 Q16

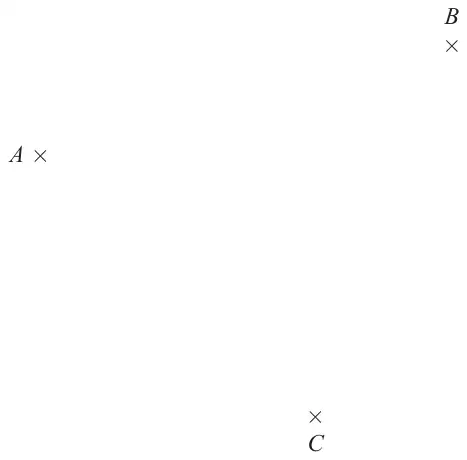

16 \(A\), \(B\) and \(C\) are three points on a map.
1 cm represents 100 metres.
Point \(T\) is 250 metres from point \(A\).
Point \(T\) is equidistant from point \(B\) and point \(C\).
On the map, show one of the possible positions for point \(T\). (3)
| Answer | Mark | Notes |
|---|---|---|
| \(T\) shown on the map | C1 | for showing a perpendicular bisector or point \(T\) equidistant from points \(B\) and \(C\). |
| C1 | for a circle or arc of circle of radius 2.5 cm or point \(T\) 2.5 cm from point \(A\) | |
| C1 | for \(T\) shown in correct position |
