A2 October 2020 Q4

4.

A uniform solid cylinder of base radius \(r\) and height \(\dfrac{4}{3}r\) has the same density as a uniform solid hemisphere of radius \(r\). The plane face of the hemisphere is joined to a plane face of the cylinder to form the composite solid \(S\) shown in Figure 3. The point \(O\) is the centre of the plane face of \(S\).

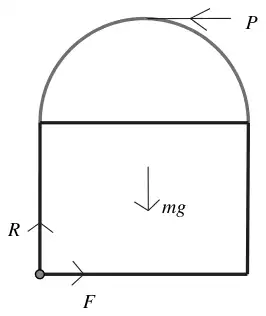

The solid \(S\) is placed with its plane face on a rough horizontal plane. The coefficient of friction between \(S\) and the plane is \(\mu\). A horizontal force \(P\) is applied to the highest point of \(S\). The magnitude of \(P\) is gradually increased.
