Higher June 2023 Paper 1 Q15

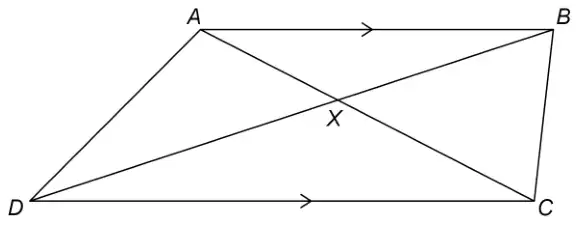

15 \(ABCD\) is a trapezium.
All four sides are different lengths.
\(AB\) is parallel to \(CD\).
The diagonals intersect at \(X\).
Not drawn accurately
For each statement, tick the correct box. [4 marks]
| True | May be true | Not true | |
|---|---|---|---|
| Triangles \(AXB\) and \(CXD\) are similar | |||
| Triangles \(AXD\) and \(BXC\) are congruent | |||
| Angle \(ADB =\) angle \(BDC\) | |||
| Area of triangle \(ABC =\) area of triangle \(ABD\) |
| Answer | Mark | Comments |
|---|---|---|
| True Not true Not true True | B4 | B1 each correct answer |
Additional guidance
Allow a cross if it’s the only answer in that row
If one tick and one or two crosses are given in a row, mark the tick
