Higher June 2019 Paper 3 Q5

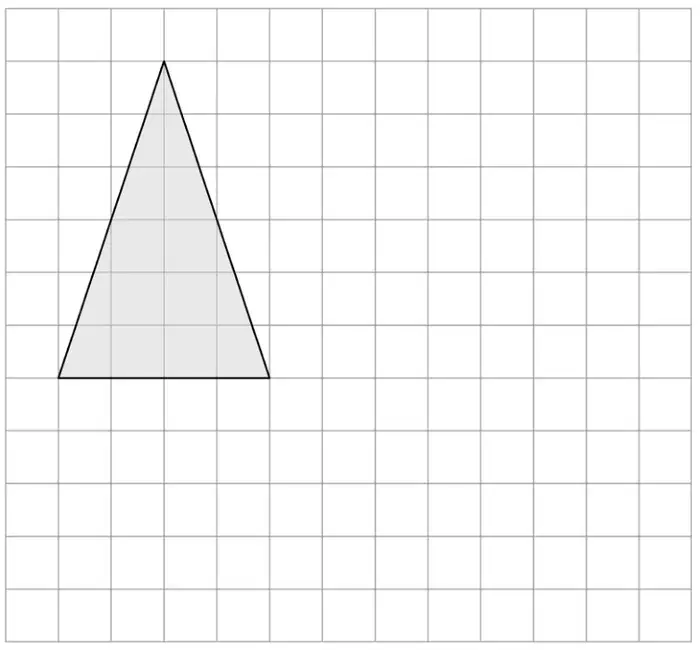

5 On the grid, draw an enlargement of the triangle with scale factor \(\dfrac{1}{2}\) [2 marks]
| Answer | Mark | Comments |
|---|---|---|
| Isosceles triangle with base 2 cm and height 3 cm in any orientation | B2 | \(\pm\) ¼ square on base or height B1 isosceles triangle with base 2 cm or height 3 cm in any orientation or acute angled triangle with base 2 cm and height 3 cm in any orientation |
Additional guidance
| Mark intention for isosceles triangle within tolerance, lines do not need to be ruled | |
| Enlargement can be drawn wholly or partially inside the original | |
| Correct vertices not connected | B1 |
| Right angled isosceles triangle | B0 |
