Higher June 2018 Paper 3 Q6

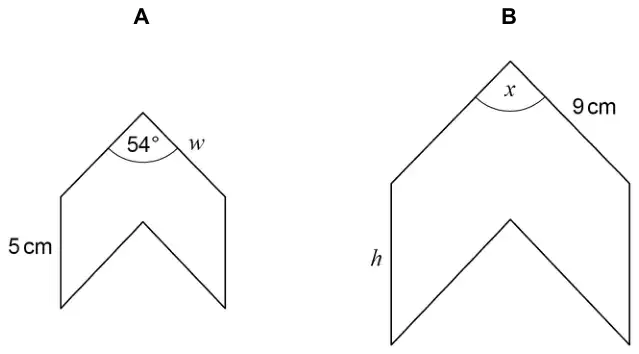

6 A and B are similar shapes.
B is an enlargement of A with scale factor 1.5
Not drawn accurately
Work out the values of \(x\), \(h\) and \(w\). [3 marks]
| Answer | Mark | Comments |
|---|---|---|
| 54 | B1 | May be on diagram |
| 7.5 6 | B2 | May be on diagram B1 for 1 correct or for answers transposed |
Additional guidance
| If answers are in wrong position on answer lines, check working and diagram for clear indication of possible transcription errors eg \(w = 9 \div 1.5 = 6\) in working, 9 on answer line \(9 \div 1.5 = 6\) in working, 9 on answer line | B1 B0 |
| Answer line takes precedence over diagram eg \(x = 54\) on diagram and \(x = 81\) on answer line | B0 |
