Higher June 2018 Paper 1 Q21

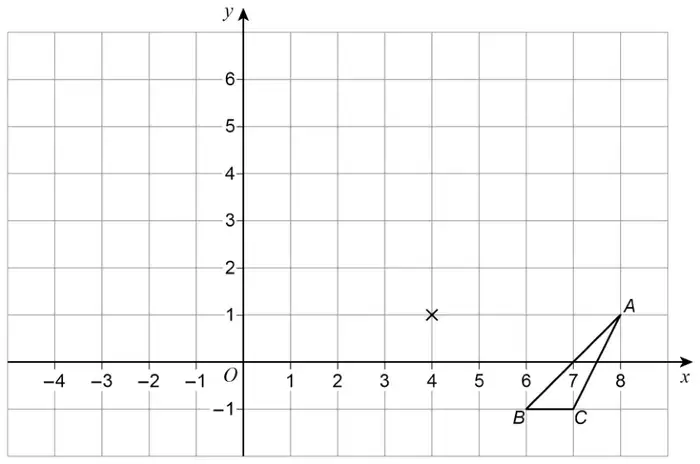

21 Enlarge triangle \(ABC\) by scale factor \(-2\), centre (4, 1) [2 marks]
| Answer | Mark | Comments |
|---|---|---|

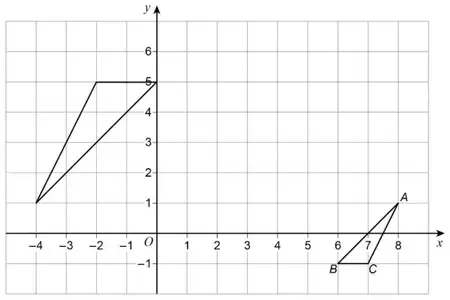

| Triangle with vertices (–4, 1) and (0, 5) and (–2, 5) | B2 | B1 one of (–4, 1) (0, 5) (–2, 5) or triangle correct size and orientation in wrong position |
Additional guidance
| Triangle must be drawn for B2 | |
| Ignore labelling of vertices on enlarged triangle | |
 | B2 |
