Foundation November 2024 Paper 2 Q8
8 100 people voted in an election for Jo, Kim or Liam.

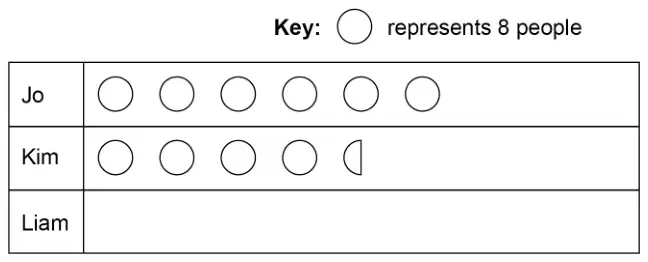

The pictogram shows the results for Jo and Kim.
Complete the pictogram. [3 marks]
| Answer | Mark | Comments |
|---|---|---|
| Alternative method 1 | ||
| \(6 \times 8\) or 48 or \(4.5 \times 8\) or 36 or \(6 + 4.5\) or 10.5 | M1 | oe may be seen on the pictogram implied by 84 |
| \(100 - (\)their 36 + their 48) or \(100 - 84\) or \(100 -\) their \(10.5 \times 8\) or 16 | M1dep | oe one of their 36 and their 48 must be from a correct method may be seen on the pictogram |
| 2 circles drawn | A1 | |
| Alternative method 2 | ||
| \(6 + 4.5\) or 10.5 | M1 | may be seen on the pictogram |
| \(100 \div 8\) or 12.5 | M1 | |
| 2 circles drawn | A1 | |
Additional guidance
| Circles do not need to be aligned | |
| Mark intention for size and shape of symbols | |
| Build up method may be seen eg \(10 \times 8 = 80 + 8 + 8 = 96 + 4 = 100\) | M2 |
| 2 circles drawn with no working | M2A1 |
