Foundation November 2021 Paper 3 Q16
16

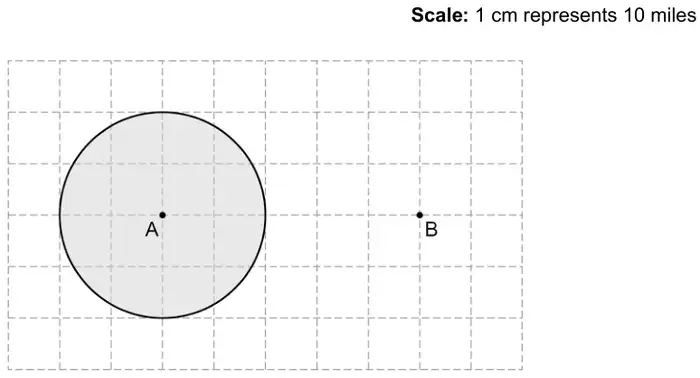

(a) Towns A and B are shown on a centimetre grid.
What does the shaded area represent?
Tick one box. [1 mark]
- All the points nearer to A than to B
- All the points at least 30 miles from B
- All the points halfway between A and B
- All the points within 20 miles of A
(b) Complete an accurate drawing of triangle \(PQR\) so that
angle \(QPR\) is \(53^\circ\)
the length of side \(PR\) is 7.5 cm [2 marks]
| Answer | Mark | Comments |
|---|---|---|
| All the points within 20 miles of A | B1 |
| Answer | Mark | Comments |
|---|---|---|
| Correct triangle drawn where angle \(QPR\) is \([51, 55]^\circ\) and \(PR\) is [7.3, 7.7] cm | B2 | B1 Angle \(QPR\) is \([51, 55]^\circ\) or \(PR\) is [7.3, 7.7] cm or Angle \(PQR\) is \([51, 55]^\circ\) and \(QR\) is [7.3, 7.7] cm |
Additional guidance
| Ignore attempts to label \(R\) | |
| \(PR\) drawn correctly, but not connected to \(Q\) | B1 |
