Foundation November 2019 Paper 2 Q13
13 A quadrilateral \(PQRS\) has
\(PQ = 5\) cm
\(QR\) perpendicular to \(PQ\)
\(QR = 7\) cm
angle \(QPS = 135^\circ\)
\(PS = 8.5\) cm

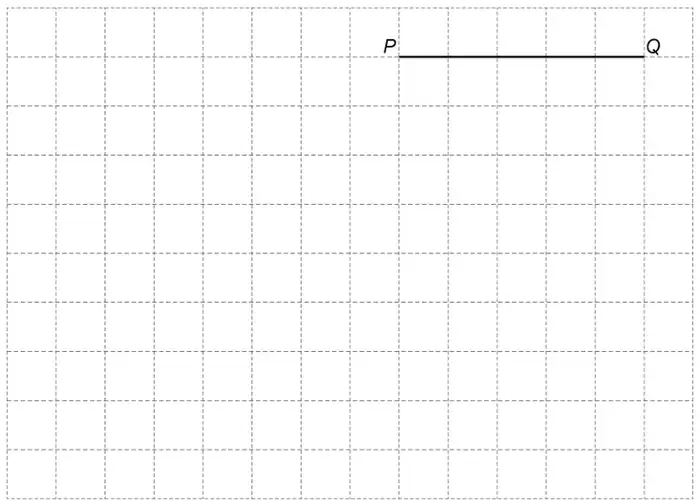

On the grid, draw the quadrilateral \(PQRS\).
\(PQ\) has been drawn for you. [4 marks]
| Answer | Mark | Comments |
|---|---|---|

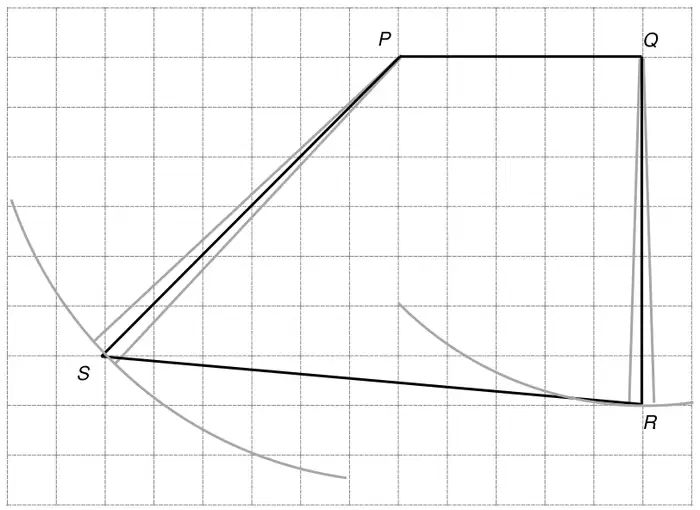

| Angle \(PQR = [88^\circ, 92^\circ]\) and line from \(Q = [6.8, 7.2]\) cm and angle \(QPS = [133^\circ, 137^\circ]\) and line from \(P = [8.3, 8.7]\) cm and complete quadrilateral | B4 | B3 at least three of the four measuring criteria met B2 any two of the measuring criteria met B1 any one of the measuring criteria met Length of \(QR\) must be within 2 mm of the right-hand arc shown below Length of \(PS\) must be within 2 mm of the left-hand arc shown below |
Additional guidance
Ignore labels if present
