Foundation November 2018 Paper 3 Q17

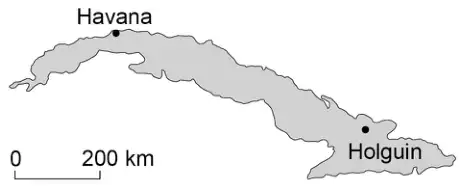

17 Here is a map of Cuba.
1.5 cm represents 200 km
Work out the actual distance from Havana to Holguin. [3 marks]
| Answer | Mark | Comments |
|---|---|---|
| [4.5, 4.9] (cm) or [45, 49] (mm) | M1 | measurement |
| their measurement \(\div\) 1.5 or \([4.5, 4.9] \div 1.5\) or \([45, 49] \div 15\) or [3, 3.3] or \(200 \div 1.5\) or 133.(3…) | M1 | oe |
| 600 or 613.(...) or [626, 627] or 640 or 653.(...) or correct answer from their [4.5, 4.9] (cm) or their [45, 49] (mm), rounded or truncated | A1 | SC2 [600, 660] |
Additional guidance
| 600 on answer line with no working or measurement shown | M1M1A1 |
| 4.7 cm measured \(4.5 \div 1.5 = 3\) and 600 \(0.2 \times 200 = 40\) with answer 640 (incorrect scaling method of 0.2 cm) | M1M1A0 |
| Measurement of 4.7 cm with answer 640 (incorrect answer for their measurement) | SC2 |
| 200, 200, 200 marked on diagram implies 4.5 and 3 | M1M1 |
| \(200 \times 3\) without measurement shown implies 4.5 and 3 | M1M1 |
